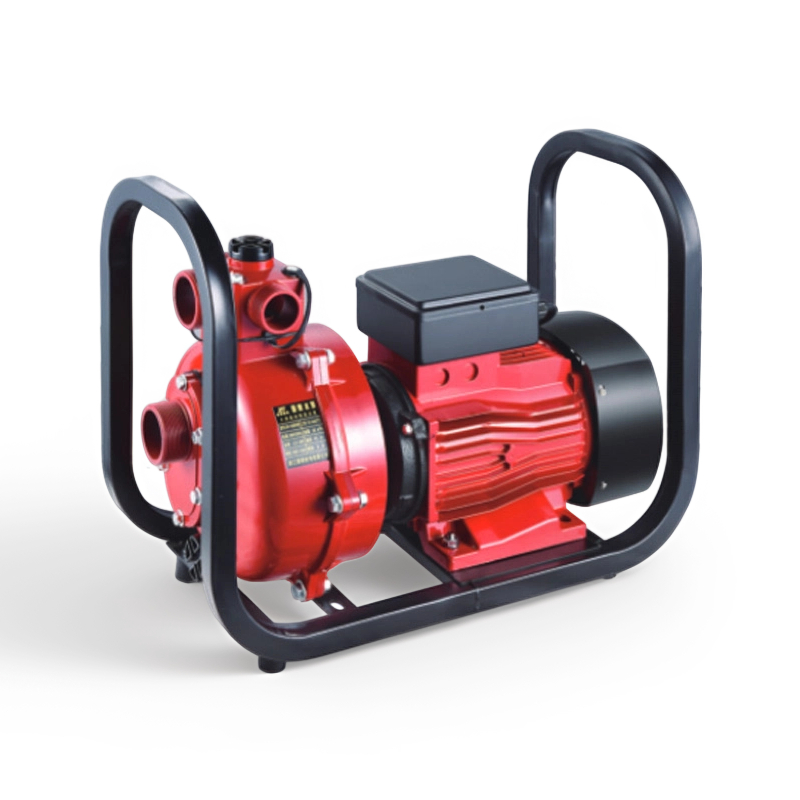

EWB CHP Self-Priming High-Pressure Pump

This self-priming water pump is designed with a focus on durability, corrosion resistance, and stable long-term operation. It adopts an SB silicon carbide mechanical seal to significantly extend service life compared with conventional sealing systems. The pump features a strong self-priming structure with a lightweight design, making it easy to handle and suitable for continuous operation.

Seal type: SB silicon carbide mechanical seal
Seal lifespan: 6–7 times longer than conventional seals
Impeller material: Lead-iron cast impeller
Casing material: Thickened anti-corrosion casing
Anti-corrosion performance: More than 5× standard cast iron
Frame structure: Semi-framework design
Frame material: 22# steel pipe welded structure
Pump type: Self-priming pump

Before the operation, ensure the pump is placed on a stable surface, and all pipeline connections are properly secured. The pump features a self-priming design and does not require full submersion before starting. During use, regularly check the mechanical seal and pipeline condition to ensure stable operation.

+86-576-86327998 / +86-13175391314 13386588880@qq.com

PREV：24V Intelligent Permanent Magnet Variable Frequency Silent Booster Pump NEXT：DSU Series High-Flow Electric Pump

Specification
Any questions?

Model	EWB-20	EWB－30	CHP-20	ZHP-20
inlet/outlet size	50	80	38/38/50	50
displacement Q,max(m³/h)	30	45	30	25
lift H.Max(m)	20	18	45	60
suction(m)	8	7	5	6
power (kW)	3	3	3	3
speed(rpm)	2900	2900	2900	2900
Voltage(v)	220/380	220/380	220/380	220/380
Frequency(Hz)	50	50	50	50
