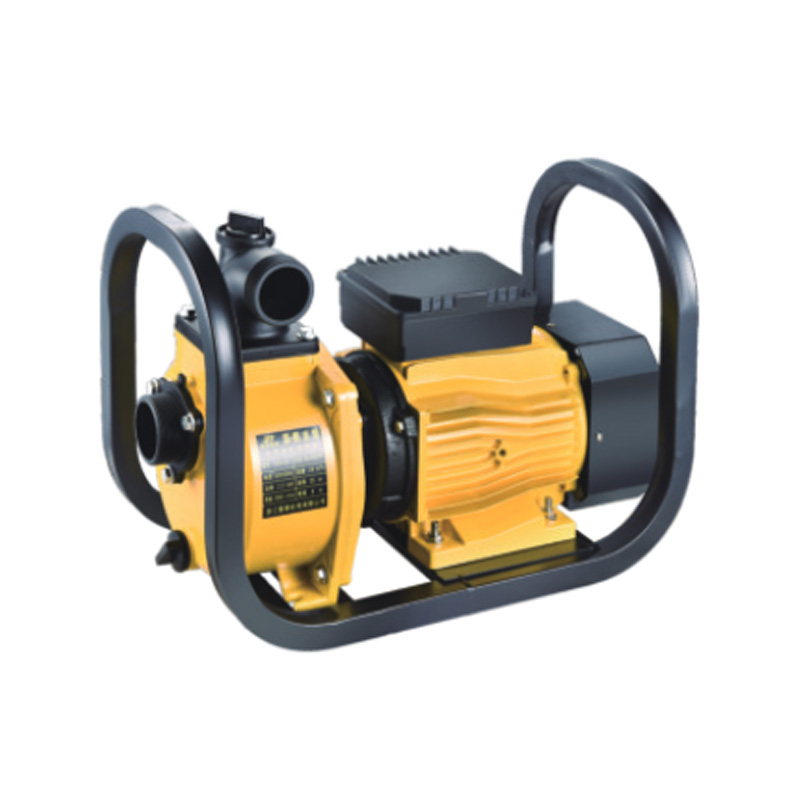

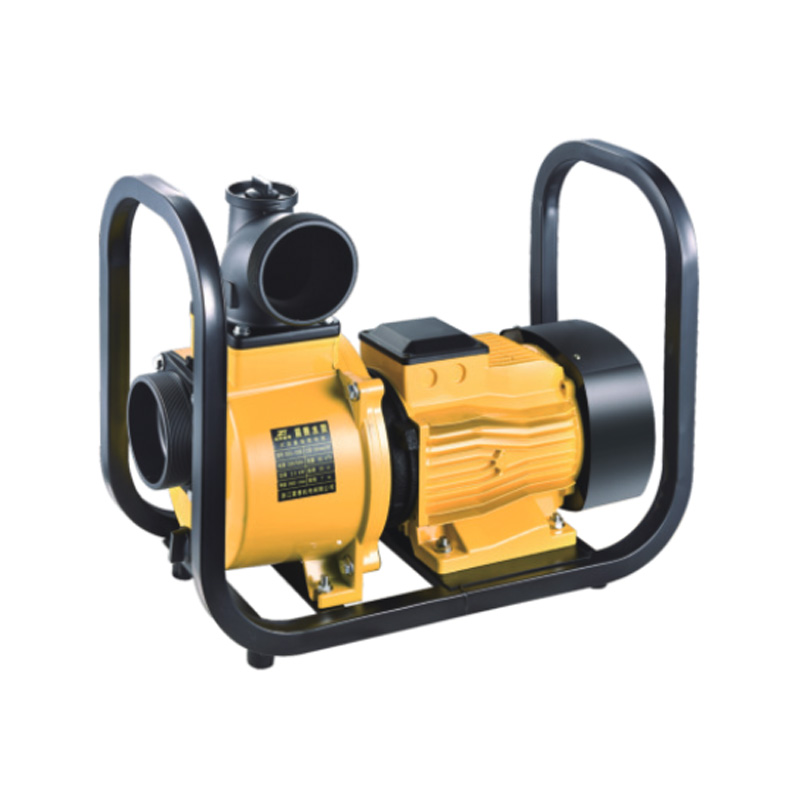

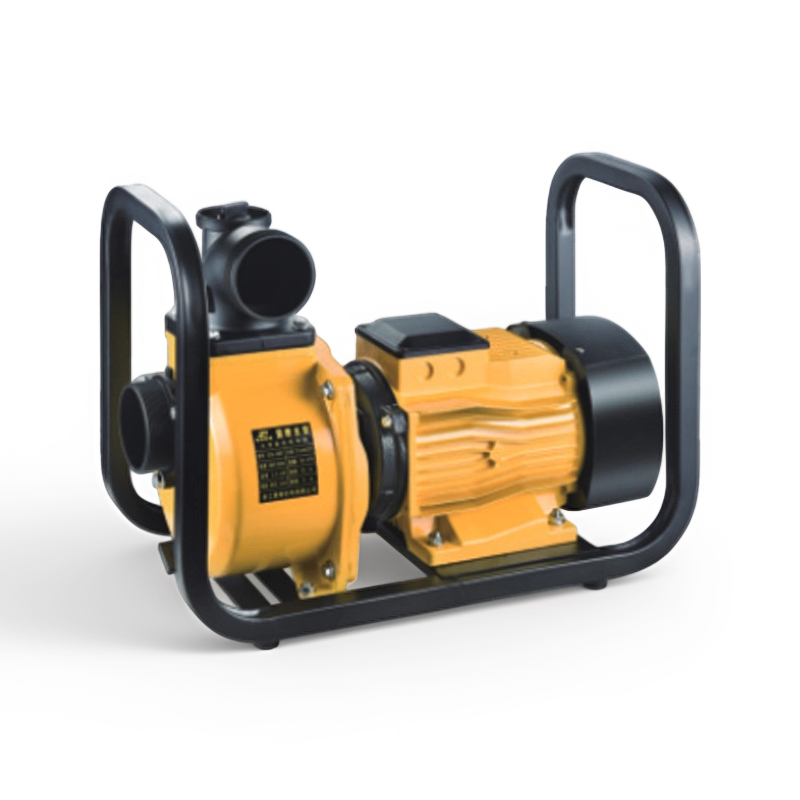

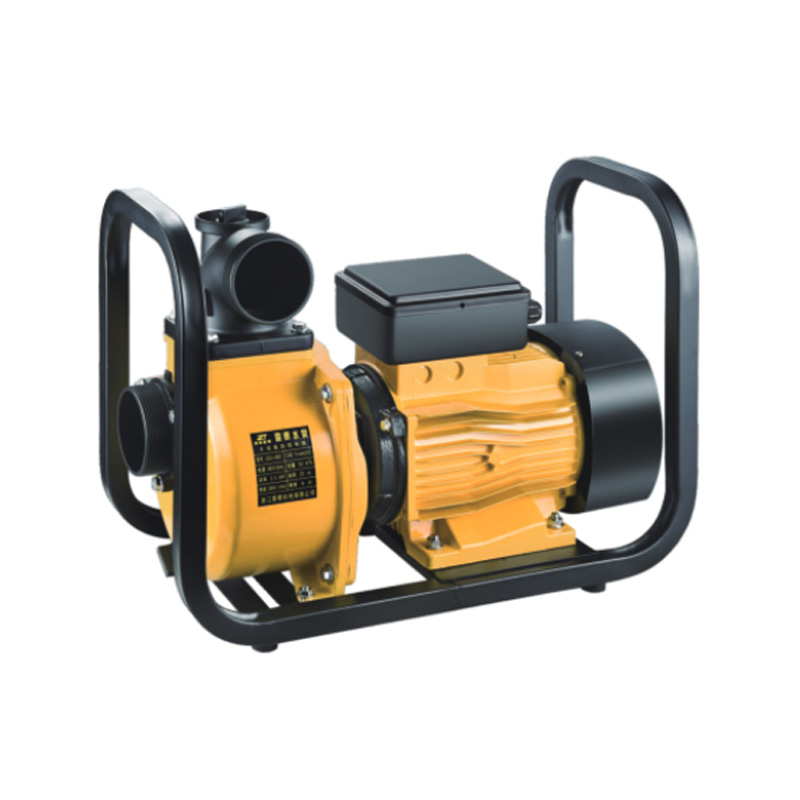

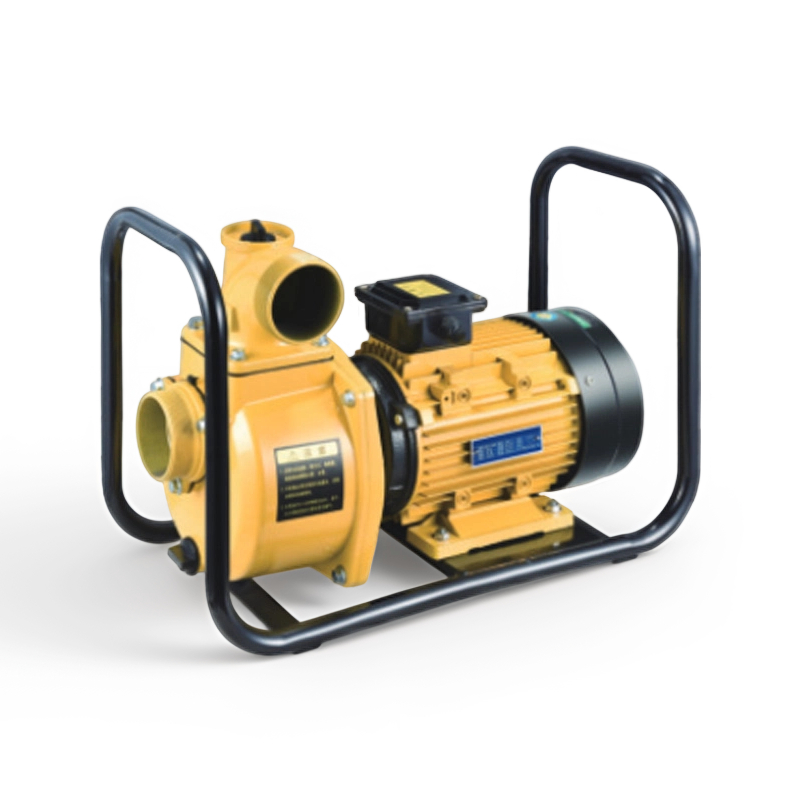

DSU Series High-Flow Electric Pump

The DSU Series high-flow electric pump is designed for efficient water transfer with a lightweight structure and stable hydraulic performance. It adopts an aluminum-housed motor, aluminum alloy pump casing, and a flow-channel type impeller and volute structure, ensuring a balance of durability and portability.

Pump type: DSU Series high-flow electric pump
Motor housing: Aluminum alloy
Pump casing material: Aluminum alloy
Impeller type: Flow-channel impeller
Volute structure: Flow-channel design
Operation feature: Self-priming, high flow, high head
Energy consumption: Low power consumption design

Before the operation, place the pump in a stable position and ensure all connections are secure. The pump is designed for self-priming operation, so it does not require submersion like traditional submersible pumps. Connect the power supply according to the rated requirements and ensure the inlet and outlet pipelines are properly installed.

+86-576-86327998 / +86-13175391314 13386588880@qq.com

PREV：EWB CHP Self-Priming High-Pressure Pump NEXT：No next article

Specification
Any questions?

Model	DSU-50	DSU-80
inlet/outlet size	50	80
displacement Q.max(m³/h)	25	50
lift H.Max(m)	28	28
suction (m)	8	8
power (kW)	2.2	2.5
speed(rpm)	2900	2900
Voltage(v)	220/380	220/380
Frequency (Hz)	50	50
