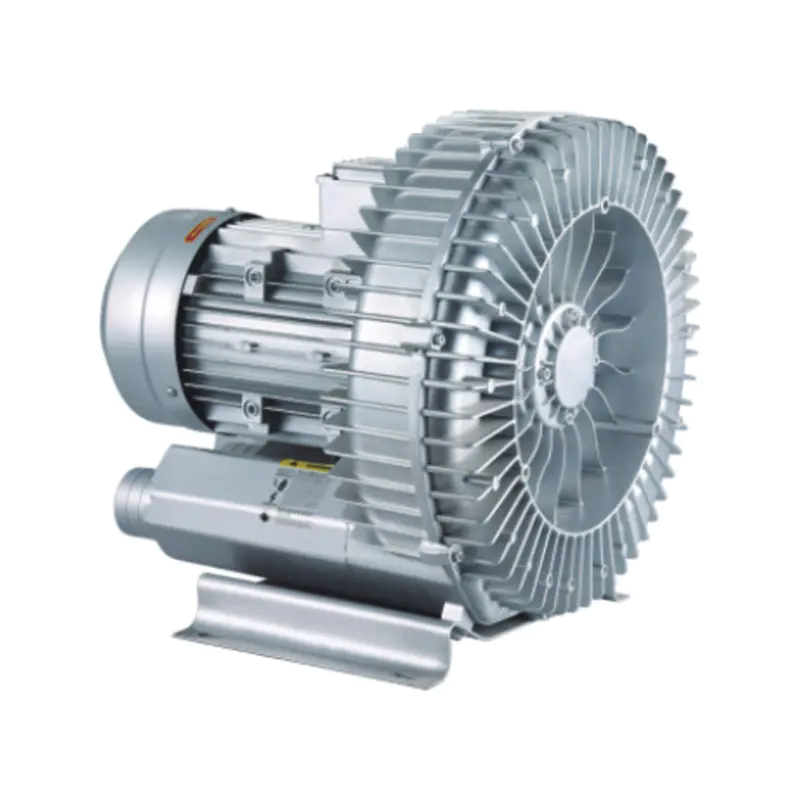

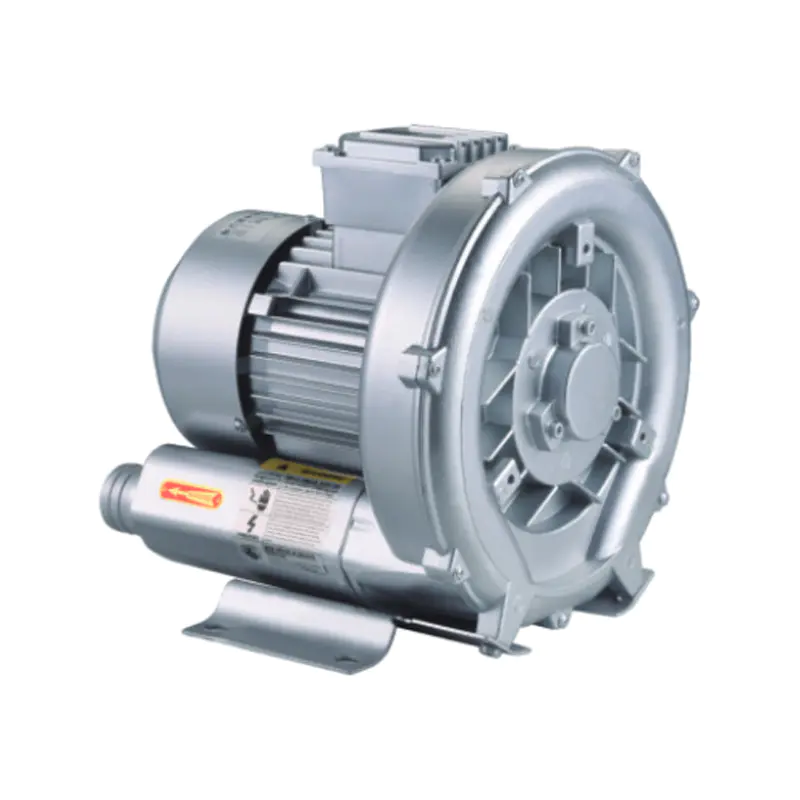

High Pressure Vortex Air Blower

This vortex air blower is a dual-function air source equipment designed for both blowing and suction applications. It features a lightweight aluminum alloy structure combined with a specially designed impeller system to deliver stable high-pressure airflow with low noise during operation.

Equipment type: Vortex air blower
Material: Aluminum alloy housing
Motor type: Fully enclosed externally ventilated motor
Airflow characteristic: High pressure, stable airflow output
Impeller structure: Multi-blade vortex impeller
Air output: Oil-free, water-free air
Operation mode: Blowing and suction dual function
Airflow control: Adjustable damper system

Place the blower on a stable, clean, dry, and well-ventilated surface before operation. Ensure the impeller rotates in the correct direction as indicated on the housing. Connect the outlet to external piping using reinforced rubber hoses to ensure stable airflow transmission. During use, regularly clean the inlet and outlet filters and silencers to prevent blockage.

+86-576-86327998 / +86-13175391314 13386588880@qq.com

PREV：No previous article NEXT：No next article

Specification
Any questions?

Model	Rated voltage	Rated current	Power rating	Maximum positive pressure	Maximum negative pressure	Maximum flow	Weight
Model	V	A	kW	Kpa	Kpa	m³/h	kg
XGB-120	220	0.6	0.12	7	5	35	6.5
XGB-250	220	1.75	0.25	12	10	60	8
XGB-370	220	2	0.37	13	11	65	9.5
XGB-370	380	0.97	0.37	13	11	65	9.5
XGB-550	220	3.5	0.55	16	14	85	12.5
XGB-550	380	1.2	0.55	16	14	85	12.5
XGB-750	220	6.5	0.75	20	18	140	15
XGB-750	380	2	0.75	20	18	140	15
XGB-1100	220	7.2	1.1	26	23	180	20
XGB-1100	380	2.8	1.1	26	23	180	20
XGB-1500	220	9	1.5	28	24	250	22
XGB-1500	380	3.4	1.5	28	24	250	22
XGB-2200	380	5.5	2.2	35	28	310	36
XGB-3000	380	7	3	37	30	370	38
XGB-4000	380	8.2	4	40	32	400	50
XGB-5500	380	12	5.5	50	40	480	65
XGB-7500	380	15.5	7.5	55	43	500	67

What products does Zhentai provide?

Zhentai provides aerators, water pumps, submersible pumps, gasoline water pumps, and vortex blowers for aquaculture, irrigation, drainage, water transfer, and water treatment applications.
Can you help us choose the right model?

Yes. Our team can recommend suitable models based on pond size, water depth, flow demand, head, voltage, working environment, and application requirements.
Do you support OEM or customized service?

Yes. We can provide OEM/ODM support, including model selection, product configuration, branding, packaging, and specification adjustment according to order requirements.
Can Zhentai provide technical support?

Yes. We provide technical guidance for product selection, installation, operation, and daily maintenance to help customers use the equipment properly.
How can I get a quotation?

Send us your required product type, quantity, destination, and working conditions. Our team will review your request and provide a suitable quotation and solution.
