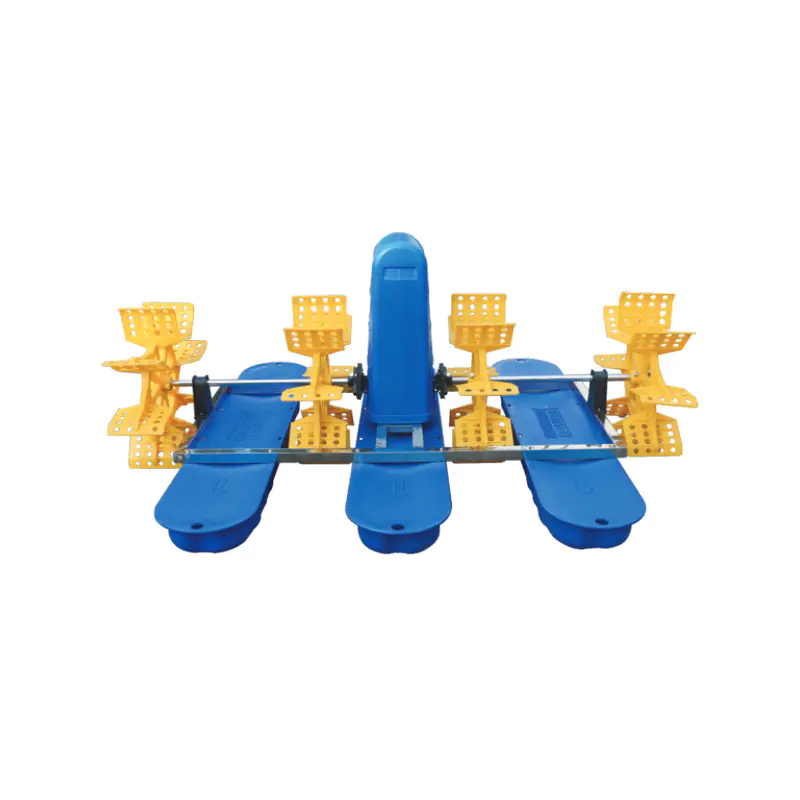

Paddle Wheel Aerator

This paddle wheel aerator is developed based on internationally advanced models, with a redesigned transmission system to improve overall efficiency and energy performance. It replaces the traditional worm gear structure with an arc-shaped bevel gear system, helping reduce energy consumption while maintaining stable aeration output.

Gear system: Arc-shaped bevel gear
Gear material: Chromium–manganese–titanium alloy steel
Gear surface treatment: Carburizing and nitriding hardening
Energy saving: More than 20% compared with conventional worm gear models
Seal type: Mechanical seal (oil leakage prevention design)
Motor protection: Built-in protection device
Float material: Plastic
Impeller material: Nylon
Shaft and frame material: Stainless steel

Install the aerator securely on the water surface before operation and ensure all components are properly fixed. During use, the arc bevel gear transmission system drives stable paddle wheel rotation to maintain consistent aeration performance while reducing energy consumption. The mechanical seal helps prevent oil leakage, and the built-in motor protection device helps avoid damage caused by abnormal operation conditions. Regular inspection of impellers, shaft, and sealing parts is recommended to ensure long-term stable performance.

+86-576-86327998 / +86-13175391314 13386588880@qq.com

PREV：Wave Maker Surge Aerator NEXT：Surface Floating Impeller Aerator

Specification
Any questions?

Model	Voltage	Power	oxygen transfer rate	Power Efficiency	No load noise	Weight	20 container
Model	V	kW	kgo²/h	kgo².kwh	dB(A)	kg	kg
ZT-0.75	380	0.75	≥1.10	≥1.25	≤78	80	85
ZT-1.1	380	1.1	≥1.25	≥1.25	≤80	80	85
ZT-1.5	220	1.5	≥1.90	≥1.25	≤80	100	70
ZT-1.5	380	1.5	≥1.90	≥1.25	≤80	100	70

What products does Zhentai provide?

Zhentai provides aerators, water pumps, submersible pumps, gasoline water pumps, and vortex blowers for aquaculture, irrigation, drainage, water transfer, and water treatment applications.
Can you help us choose the right model?

Yes. Our team can recommend suitable models based on pond size, water depth, flow demand, head, voltage, working environment, and application requirements.
Do you support OEM or customized service?

Yes. We can provide OEM/ODM support, including model selection, product configuration, branding, packaging, and specification adjustment according to order requirements.
Can Zhentai provide technical support?

Yes. We provide technical guidance for product selection, installation, operation, and daily maintenance to help customers use the equipment properly.
How can I get a quotation?

Send us your required product type, quantity, destination, and working conditions. Our team will review your request and provide a suitable quotation and solution.
