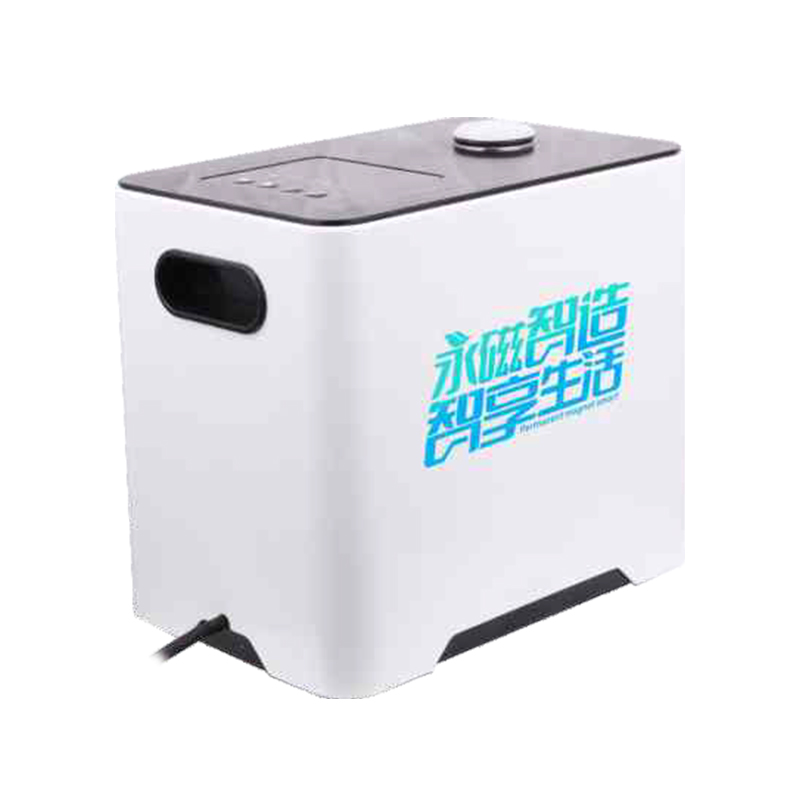

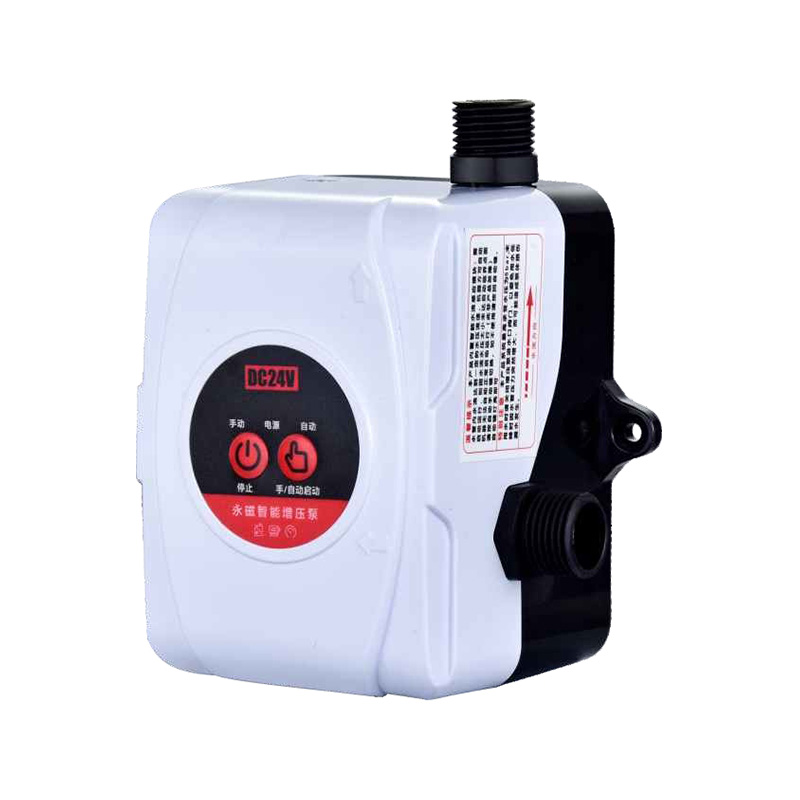

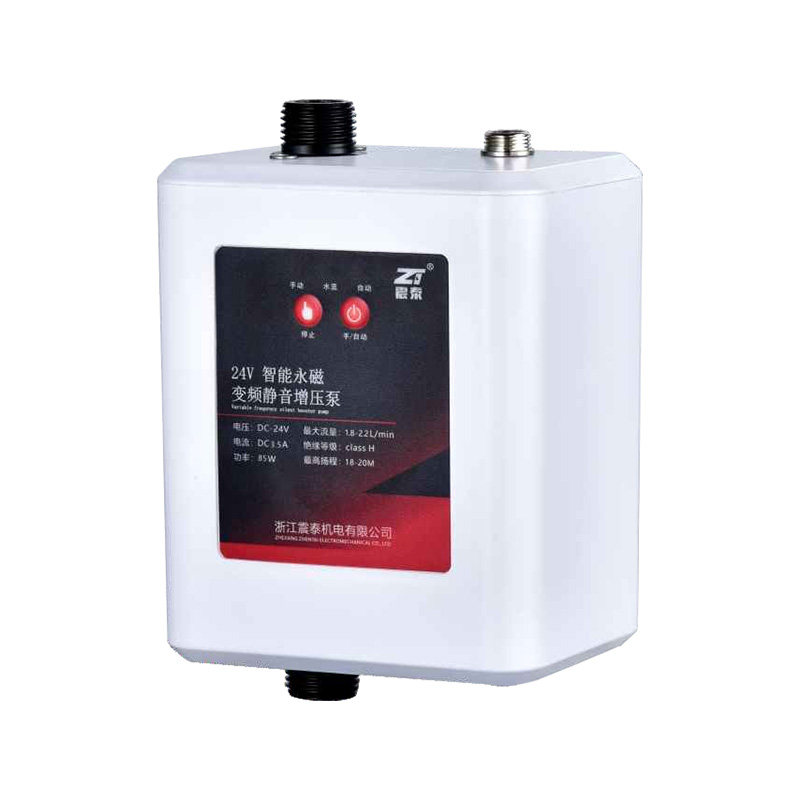

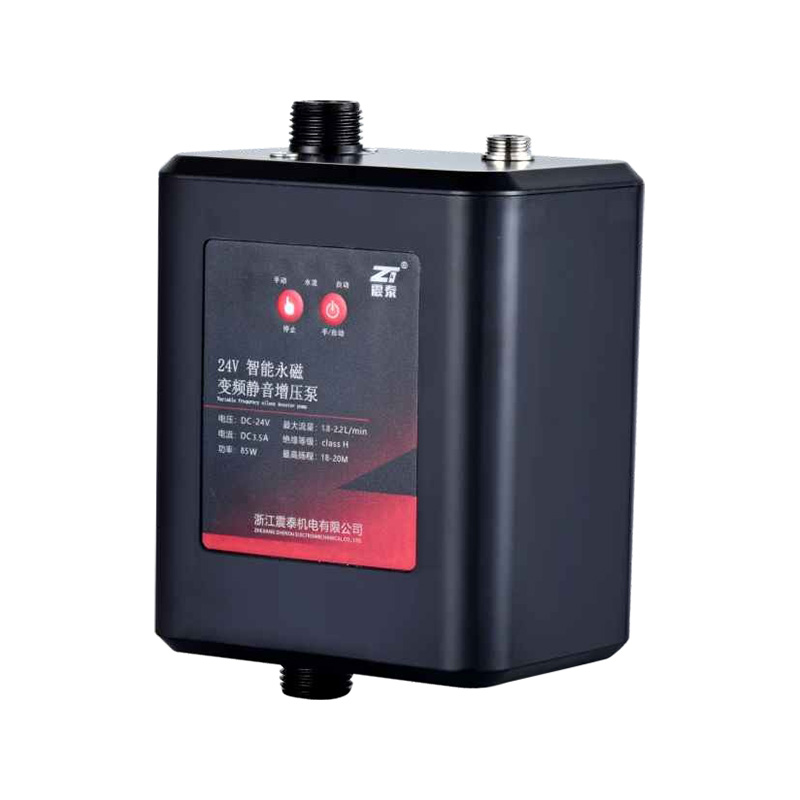

24V Intelligent Permanent Magnet Variable Frequency Silent Booster Pump

This intelligent permanent magnet variable frequency silent booster pump is designed for a stable and energy-efficient water supply and pressure boosting. It adopts a permanent magnet synchronous motor, which provides high efficiency, strong power output, and low operating noise. The system integrates variable frequency control technology to enable automatic start and stop operation, improving user convenience while maintaining stable water pressure.

Motor type: Permanent magnet synchronous motor
Control type: Variable frequency intelligent control system
Operation mode: Automatic start/stop
Performance characteristics: High efficiency, low noise, high power factor
Noise level: Low noise operation design

Install the pump in a suitable indoor or sheltered location and ensure all water inlet and outlet connections are properly secured. Connect the unit to a stable power supply, and the system will automatically start or stop based on water demand. The variable frequency control system adjusts operating speed to maintain stable water pressure.

+86-576-86327998 / +86-13175391314 13386588880@qq.com

PREV：SZQ Permanent Magnet Variable Frequency Oil Immersed Pump NEXT：EWB CHP Self-Priming High-Pressure Pump

Specification
Any questions?

No.	Model	Power(W)	Head(m)	Flow(m³/h)	Caliber(mm)
1	ZTDC24V	100	19	1.9	20mm
2	ZTDC220V	400	35	2.7	25mm
3	ZTDC220V	600	35	3.5	25mm

What products does Zhentai provide?

Zhentai provides aerators, water pumps, submersible pumps, gasoline water pumps, and vortex blowers for aquaculture, irrigation, drainage, water transfer, and water treatment applications.
Can you help us choose the right model?

Yes. Our team can recommend suitable models based on pond size, water depth, flow demand, head, voltage, working environment, and application requirements.
Do you support OEM or customized service?

Yes. We can provide OEM/ODM support, including model selection, product configuration, branding, packaging, and specification adjustment according to order requirements.
Can Zhentai provide technical support?

Yes. We provide technical guidance for product selection, installation, operation, and daily maintenance to help customers use the equipment properly.
How can I get a quotation?

Send us your required product type, quantity, destination, and working conditions. Our team will review your request and provide a suitable quotation and solution.
