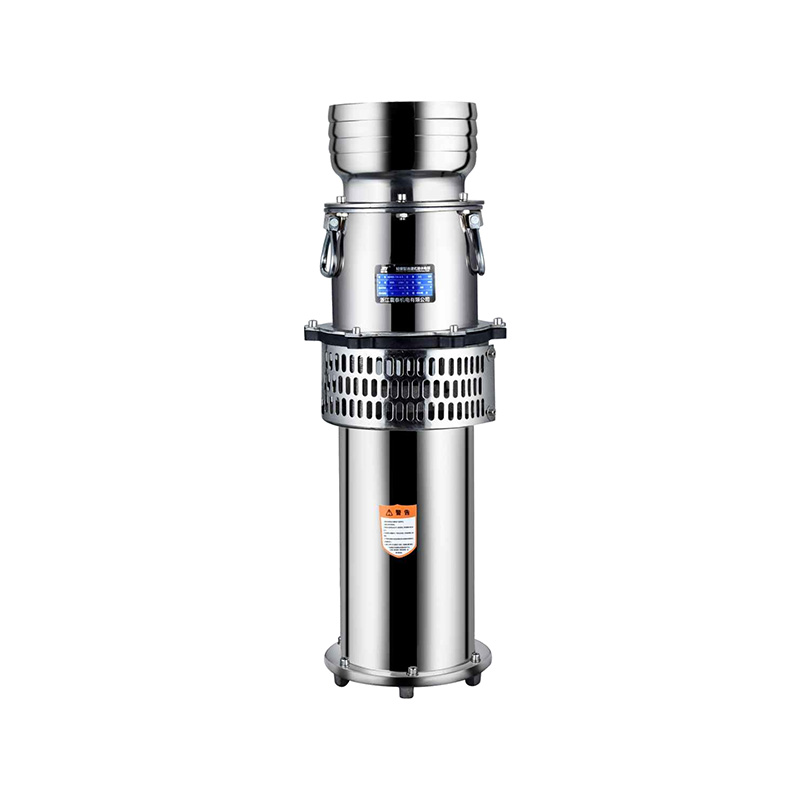

QY All Stainless Steel Oil Immersed Submersible Pump

This all stainless steel oil-immersed submersible pump is designed with a fully stainless steel structure for improved corrosion resistance and long-term stability. The pump system is composed of a water pump, a sealing unit, and an oil-filled three-phase asynchronous motor. The motor is positioned at the lower section, while the pump body is located above, forming a compact vertical structure.

Pump type: All stainless steel oil-immersed submersible pump
Motor type: Three-phase asynchronous motor (oil-filled)
Pump structure: Vertical integrated pump-motor design
Material: Stainless steel body
Seal structure: Integrated mechanical seal box
Installation type: Submersible operation

Before the operation, ensure the pump is fully submerged and properly connected to a stable power supply. The integrated sealing system should be checked regularly to maintain safe and stable operation. This pump is suitable for continuous use in water supply and drainage applications under various industrial, agricultural, and municipal conditions, especially where corrosion resistance is required.

+86-576-86327998 / +86-13175391314 13386588880@qq.com

PREV：No previous article NEXT：QY Lightweight Oil Immersed Submersible Pump

Specification
Any questions?

No.	Model	Max Flow(m³/h)	Max Head(m)	Power(kW)	Size	Voltage
1	QY65-10-3	65	10	3	4 inches (100mm)	380
2	QY160-5-3	160	5	3	6 inches (150mm)	380
3	QY95-14-4	95	14	4	4 inches (100mm)	380
4	QY180-10-4	180	10	4	6 inches (150mm)	380
5	QY160-12-5.5	160	12	5.5	6 inches (150mm)	380
6	QY250-8-5.5	250	8	5.5	8 inches (200mm)	380
7	QY280-15-7.5	280	15	7.5	6 inches (150mm)	380
8	QY280-10-7.5	280	10	7.5	8 inches (200mm)	380

What products does Zhentai provide?

Zhentai provides aerators, water pumps, submersible pumps, gasoline water pumps, and vortex blowers for aquaculture, irrigation, drainage, water transfer, and water treatment applications.
Can you help us choose the right model?

Yes. Our team can recommend suitable models based on pond size, water depth, flow demand, head, voltage, working environment, and application requirements.
Do you support OEM or customized service?

Yes. We can provide OEM/ODM support, including model selection, product configuration, branding, packaging, and specification adjustment according to order requirements.
Can Zhentai provide technical support?

Yes. We provide technical guidance for product selection, installation, operation, and daily maintenance to help customers use the equipment properly.
How can I get a quotation?

Send us your required product type, quantity, destination, and working conditions. Our team will review your request and provide a suitable quotation and solution.
